ELECOAT PI

This process is water solved Electrodeposition coating that used polyimide resin.


Characteristic

  • Can make high heat-resistant and insulation film uniformly.
  • Coatings contain 80% and more of water, and excellent in the environment adaptability and the safety.

Application

  • Insulation film of various electronic devices
  • Electrical circuit material
  • Unti-abrasion coating for precision apparatus parts

Property

  • PROPERTY ELECOAT SPECIFICATION
    5% Weight loss Temperature (℃) 400 TGA, N2
    Tensile strength (kg/mm2) 11 JIS K7127
    Elongation at break (%) 50 JIS K7127
    Coefficient of elasticity (kg/mm2) 250 JIS K7127
    Dielectric breakdown voltage (V) 1000 1 min (10μ)
    Volume resistivity 500V (Ω・cm) 1016 ASTM D 257
    Surface resistivity 500V (Ω) 1016 ASTM D 257
    Dielectric constant 1kHz, 25℃ 1.8 ASTM D 150
    Dielectric loss tangent 1kHz, 25℃ 0.002 ASTM D 150

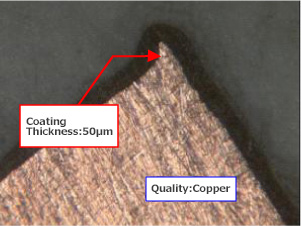

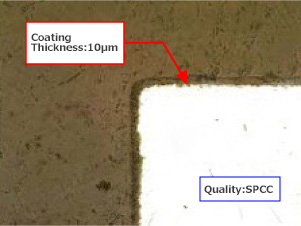

  • Property image
